Параметры

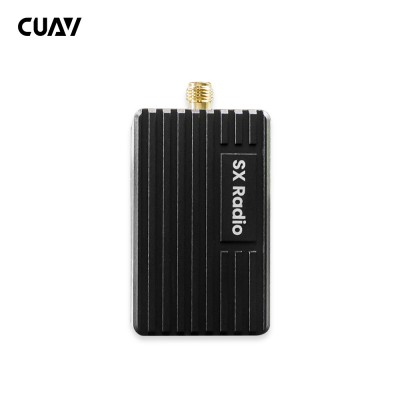

| CUAV® SX RF | |
| PERFORMANCE | |
| FREQUENCY RANGE | ISM 902 to 928 MHz |
| TRANSMIT POWER (SOFTWARE SELECTABLE) | Up to 30 dBm* |
| CHANNELS | 10 hopping sequences share 50 frequencies |
| Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s | |
| MAXIMUM DATA THROUGHPUT | High data rate: 120 kb/s |
| AVAILABLE CHANNEL FREQUENCIES | Low and middle data rate: 101**; High data rate: 50 |
| Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm | |
| Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB | |
| RECEIVER RF SELECTIVITY | Below 900 MHz and above 930 MHz; > 50 dB |
| RURAL RANGE LINE OF SIGHT*** | Low data rate: Up to 105 km (65 mi) |
| URBAN RANGE LINE OF SIGHT**** | Low data rate: Up to 18 km (11 mi) |
| INDOOR RANGE | Low data rate: Up to 300 m (1,000 feet) |
| NETWORKING AND SECURITY | |
| MODULATION | Gaussian Frequency Shift Keying |
| SPREADING TECHNOLOGY | Frequency Hopping Spread Spectrum (FHSS) |
| Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh | |
| Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command. | |
| GENERAL | |
| DIMENSIONS 尺寸 | |
| WEIGHT | 40g |
| ROHS | Compliant |
| MANUFACTURING | ISO 9001:2000 registered standards |
| HOST INTERFACE CONNECTOR | 37 castellated SMT pads |
| ANTENNA CONNECTOR OPTIONS | SMA |
| ANTENNA IMPEDANCE | 50 ohms unbalanced |
| MAXIMUM INPUT RF LEVEL AT ANTENNA PORT | 6 dBm |
| OPERATING TEMPERATURE | -40° C to 85° C |
| POWER REQUIREMENTS | power |
| SUPPLY VOLTAGE | 5 V typical |
| RECEIVE CURRENT (VCC = 5 V) | 40 mA |
| TRANSMIT CURRENT (VCC = 5 V) | 900 mA @ 30 dBm; 640 mA @ 27 dBm; 330 mA @ 20 dBm |
| SLEEP CURRENT (VCC = 5 V) | 2.5 uA |
| REGULATORY APPROVALS 认证 | |
| UNITED STATES | FCC ID: MCQ-XBPSX |
| CANADA | IC: 1846A-XBPSX |
| AUSTRALIA | RCM |
