Параметры

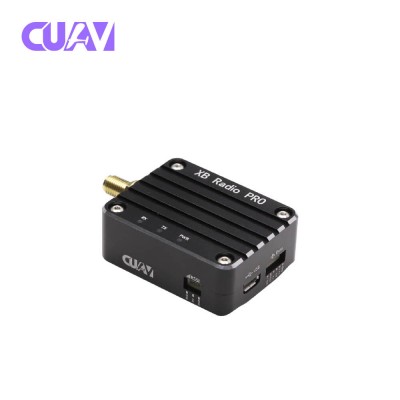

| CUAV® xbee | |
|---|---|
| hardware | |
| frequency range | 902 ~ 928 MHz |
| processor | ADF7023 transceiver，Cortex-X3 EFM32G230@28Mhz |
| Programmers include：Freescale MC9s08QE32 | |
| Antenna selection | wire.U.FlL and RPSMSA |
| function | |
| data rate | 10kbps/200Kbps（De acuerdo con diferentes tasas de firmware,，tacitly approve 200k) |
| Urban / indoor distance | 10kbps: Up to 2000 feet (610 meters); 200kbps: Up to 1000 feet |
| Outdoor/Suburban Distance | 10kbps: up to 15.5km 200kps: up to 6.5k meters |
| Maximum power | 24dBM (250mw) software optional |
| Receiver sensitivity | -101dBM@200Kpds ;-110dBm@10kbps |
| characteristic | |
| Data interface | UART(3V）.SPI |
| GPIO | 15 digital iO, 4 10-bit ADC inputs, 2 PWM outputs |
| Network Topology | DIgiMEsh, relay, point-to-point, point-to-multipoint, peer-to-peer network |
| Spread spectrumFHSS (software optional) | |
| Programmability | |
| internal storage | 32kb FLASH/2kb RAM |
| CPU clockUp to 50MHZ | |
| power | |
| service voltage | 4-7v |
| Emission current | 229mA |
| Receive current | 44ma |
| Sleep current | 3uA |
| Management agency certification | |
| FCC（America） | MCQ-XB900HP |
| iC（Canada） | 1846A—XB900HP |
| C-tick(Australia） | yes |
| Anatel（Brazil） | yes |
| IDA（Singapore） | yes |
