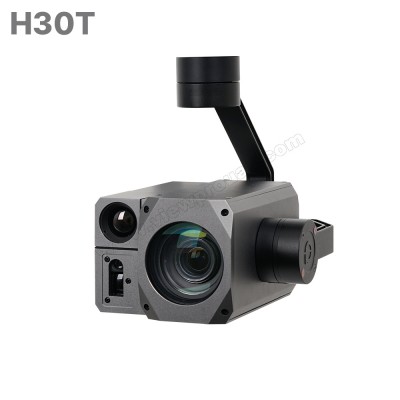

VIEWPRO H30T 30x Starlight Night Vision AI Tracking Camera Payloads

Hardware Parameter
Working voltage	16V
Input voltage	4S ~ 6S
Output voltage	5V (connect with PWM)
Dynamic current	900~1500mA @ 16V
Working environment temp.	-20℃ ~ +60℃
Output	micro HDMI(1080P 30fps/60fps) / IP (RTSP/UDP 720p/1080p 30fps)
Local-storage	TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format	JPG(1920*1080)
Video storage format	MP4 (1080P 30fps)
Card reading online	HTTP read pictures
Control method	PWM / TTL / S.BUS / TCP(IP output)/UDP(IP output version)
Geotagging	Support, display time and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range	Pitch/Tilt:-40°～100°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range	Pitch/Tilt: -35°～95°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle	Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center	√
EO Camera spec
Imager Sensor	1/1.8 Type STARVIS CMOS Sensor
Picture quality	4.17MP
Lens optical zoom	30x, f=6.5~162.5mm, F1.6 to F4.8
Digital zoom	12x (max. 432x with StableZoom)
Min object distance	100 mm (Wide end), 1200 mm (Tele end)
Horizontal viewing angle	58.1°(wide end) ~ 2.3°(tele end)
Sync system	Internal
Image S/N	50 dB (Weight On)
Min illumination	In the case of ICR-Off (Typical value) 0.009 lx (1/30 sec, 50%, High Sensitivity mode On) 0.09 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.0012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.012 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) In the case of ICR-On 0.00008 lx (1/30 sec, 50%, High Sensitivity mode On) 0.00063 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.000005 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On)
High Sensitivity mode On/Off	Off
Recommended illumination	100 lx to 100,000 lx
Gain	Auto/Manual (0 to 50.0 dB (0 to 28 step)) Max. Gain Limit (10.7 to 50.0 dB (6 to 28 step))
White balance	Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto)
Wide Dynamic Range Mode	On/Off
Shutter speed	1/1 sec to 1/10000 sec (22 steps)
Backlight compensation On/Off	Off
Image Stabilizer On/Off/Hold	Off
ICR On/Off	Off
Aperture control	16 steps
Noise Reduction	On/Off (level 5 to 1 / Off, 6 steps)
Defog	On/Off (low, mid, high)
OSD	Yes
IR Thermal Imager Spec
Focus Length	19mm
Coating Film	DLC
Horizontal FOV	22.9°
Vertical FOV	18.4°
Diagonal FOV	29.0°
Detective Distance (Man: 1.8×0.5m)	792 meters
Recognize Distance (Man: 1.8×0.5m)	198 meters
Verified Distance (Man: 1.8×0.5m)	99 meters
Detective Distance (Car: 4.2×1.8m)	2428 meters
Recognize Distance (Car: 4.2×1.8m)	607 meters
Verified Distance (Car: 4.2×1.8m)	303 meters
Working mode	Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel	640*512
Pixel pitch	12μm
Focusing method	Athermal prime lens
NETD	≤50mK@F.0 @25℃
Color palette	White hot, black hot, pseudo color
Digital zoom	1x ~ 8x
Sync correct time	Yes
EO/IR Camera Object Tracking
Update rate of deviation pixel	30Hz
Output delay of deviation pixel	<30ms
Minimum object contrast	5%
SNR	4
Minimum object size	16*16 pixel
Maximum object size	256*256 pixel
Tracking speed	±48 pixel/frame
Object memory time	100 frames
IR Laser Rangefinder
Range	5~1000 meters
Accuracy	1m: <400±1 2m: >400±0.4%
Light Beam	905nm pulse laser
Divergent Angle	12 mrad
Laser pulse frequency	0.1–1Hz
Location Resolving	Latitude and longitude of target
Ranefinder	Target distance measuring
EO Camera AI Performance
Targets type	Car and human
Simultaneous detection quantity	≥ 10 targets
Min contrast ratio	5%
Min target size	5×5 pixel
Car detection rate	≥85%
False alarm rate	≤10%
Packing Information
N.W.	1134g(Viewport Version)
Product meas.	173.5128.7198.9mm / 173.5128.7204.6mm(Viewport Version)
Accessories	1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion
G.W.	2854g
Package meas.	350300250mm
