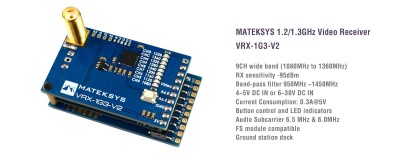

Matek Systems VRX-1G3-V2 1.2/1.3GHZ Видео приемник

Features & Specifications

• Receiving frequency: 9CH (1080MHz to 1360MHz)
• RX Sensitivity: -95dBm
• Band-pass filter 950MHz~1450MHz
• Dual input options: 4~5V via pins or 6-30V via “DC” pad on VRX-DK
• Button control and LED indicators

• VRX-DK input voltage 6~30V (“DC” pad)
• VRX-DK regulator output: 5V 2.5A
• Current Consumption: 0.3A @5V
• Video format: NTSC or PAL
• Video Output impedance: 75Ω, Typ.
• Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
• ANT. input impedance: 50Ω, Typ.
• RF Connector: SMA

• 2.54mm pins and PCB size are compatible with FS module
• 5pins (5V, Gnd, A6.5, A6.0, Video) work with FS dock

• Weight: 12g ( w/o dock), 19g (w/ dock)
• Size: board 43*27mm

Includes

• 1x 1.2/1.3G Video receiver VRX-1G3-V2
• 1x VRX-DK
• 1x Dipole antenna_SMA, center freq 1240MHz
