Product description:

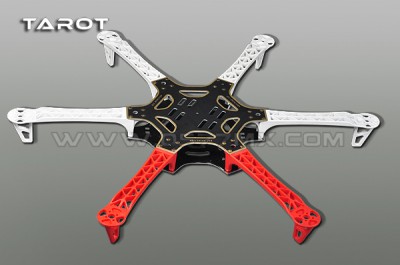

The new six-axle vehicle rack arm PA66 +30% ultra high strength material,
Impact, and impact-resistant. The main use of integrated PCB board connection, gold-plated composite PCB circuit equipped with high-strength
Board, the power ESC connection faster and more secure. The new design sink motor mounting position,
Uplift the the PCB position of the new six-axis aircraft center of gravity is lower, more stable. Optimize the design of large installation space,
For various flight control system to provide sufficient space for the installation. The new four-axis aircraft with non-target M2.5
Stepped screws, PCB board and arm can securely connected.
Specifications:
Aircraft Model: FY550
Body weight 475g
The symmetrical motor wheelbase 550mm
Take-off weight of 1200g ~ 2400g
Propeller 10 × 4.5in
Recommended battery LiPo (3S-4S 1500mAh ~ 2600mAh)
Recommended motor 22 × 12mm (Stator size)
Recommended ESC 30A
