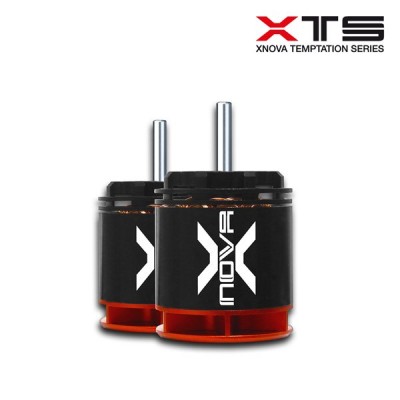

Xnova Lightning 2216-4100kv (Shaft A)

2216-4100-A
Нет в наличии
9937 руб.
Количество:

Категории: Xnova

Slots & Poles12n10p
Winding TYY
rpm/V920
Volt (V)10 / 22.2
Io(A)1.8 / 2.8
Rm (mohm)28 / 28
Weight (without connector) (g)150
Body Length (no shaft) mm40.7
Diameter (mm)36
Shaft Length (mm) (Details pictures)A or B
Shaft Dia. (mm)5
Mounting Holes CTC Distance (mm)25
Mounting ScrewM3x0.5
Max Eff. Curr.25.35 / 47.12
Max Eff.85.80 / 88.11
Kt (Nm/A0.0104
Km (Nm/sqrt(w))0.0620
Max Continuous Power(Watts)1150
Peak Continuous Power(Watts) (2 sec)1450
Max Continuous Current(Amps)52
