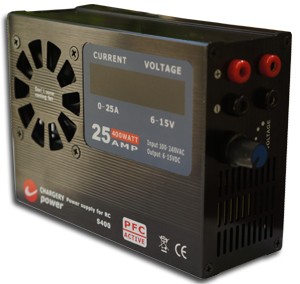

S400 is programming digital power supply with Active PFC and output 15V 25A 400W maximal at 100~240VAC, the power supply reached up to 92% at 60% of load and AC220V, ultra low power consumption make sure its internal temperature under 75℃ and realize components' performance.
Active PFC and Synchronous Rectification assure S400's high performance and reliability.
Input/Output Specifications:
Input Voltage: AC 110V/220V, 50/60Hz
Range Voltage: AC 100-240V, 47~63Hz
Max Current ： 4.5A @100VAC, 2.0A @ 220VAC
Efficiency: 92% at 60% load and 220V.
Active PFC: PF>0.99 at 90VAC, 100% of load
Output Power: 400W MAX.
Output Voltage: 6.0V~15.0V adjustable
Output Current: 0~25A(27A MAX.)
General Specifications:
Operating Temperature: 0~50℃
Storage Temperature: -20~85℃
Operating Relative Humidity: 5~95%RH
Withstanding Voltage: AC 2000V(Min), 5mA(Max)
Insulation Resistance: DC500V 100MΩ(Min)
Mechanical Characteristics:
Dimension: 145*106*55 (mm, L*W*H) or 5.7*4.2*2.16 (inch)
AC Plug: Customized according to your demand
Case Material : AL alloy
DC output : two pairs 4mm gold banana jack
Net weight: 0.8Kg without input cable.
